March 27, 2004

We lit up the wireless connection from the fiber drop to our property.  We used Airaya 108 Mbps radios.  I am delighted with the results so far.  Next we'll pour some concrete to make the antenna permanent.  Then we'll add an access point to provide wireless to our neighbors.

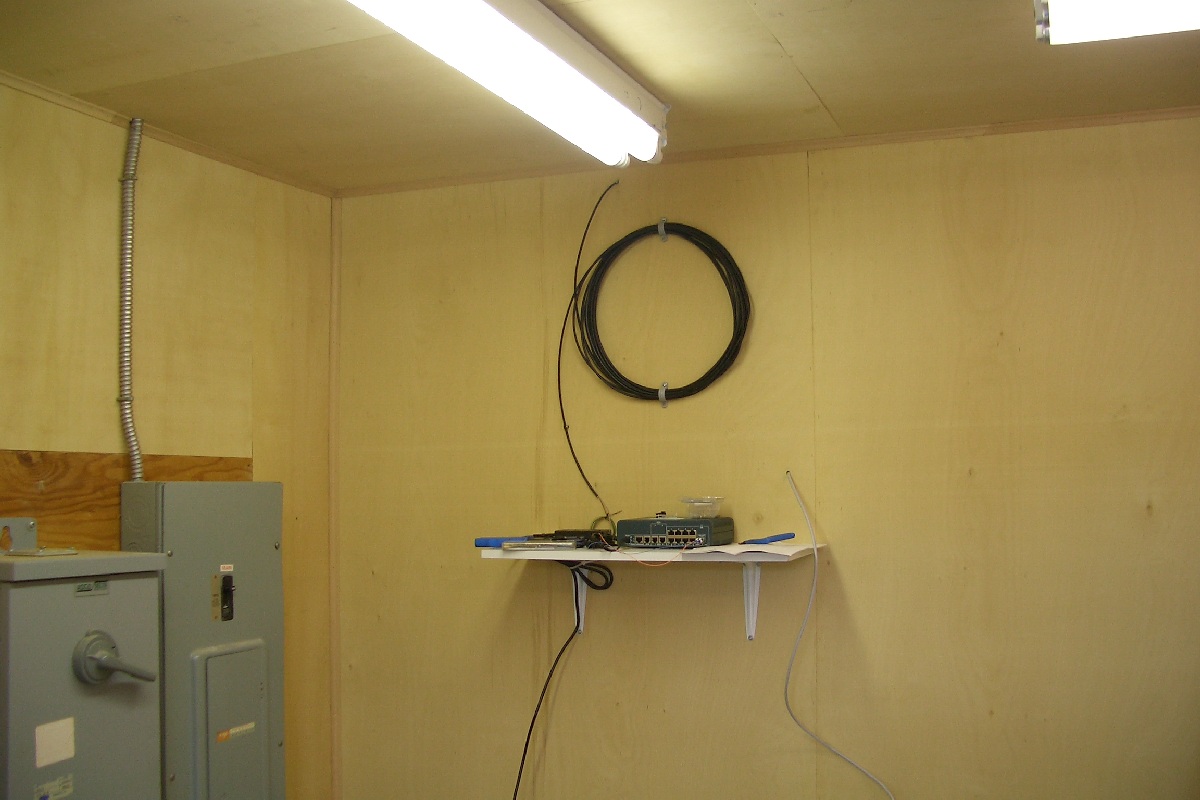

This is the fiber to
Ethernet switch.  You
can see the fiber coiled up

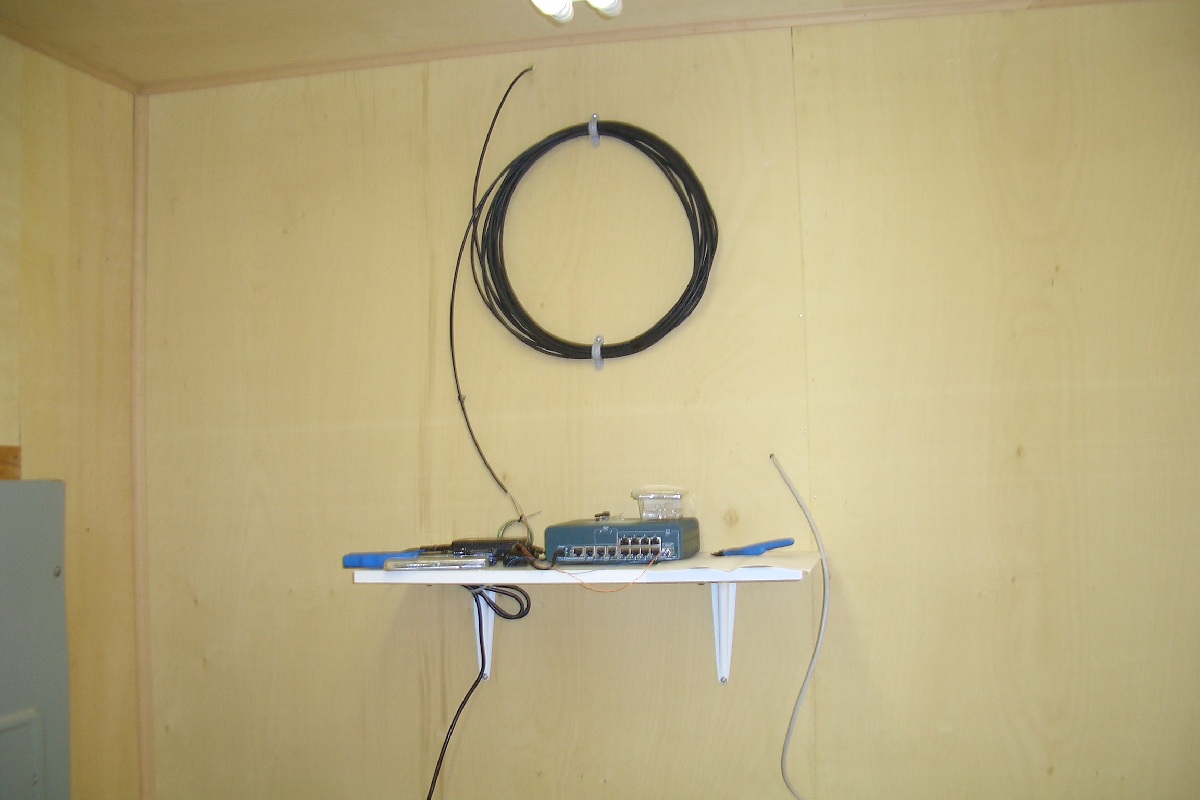

A closer view

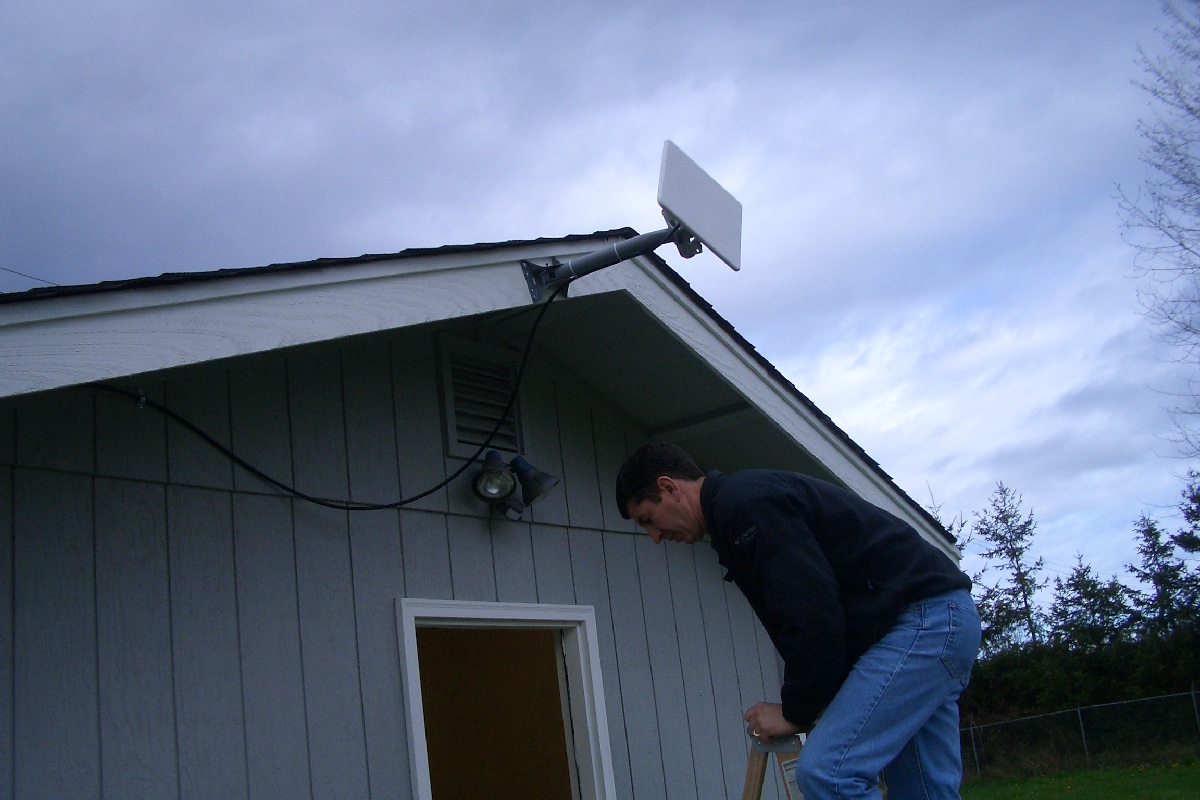

The antenna

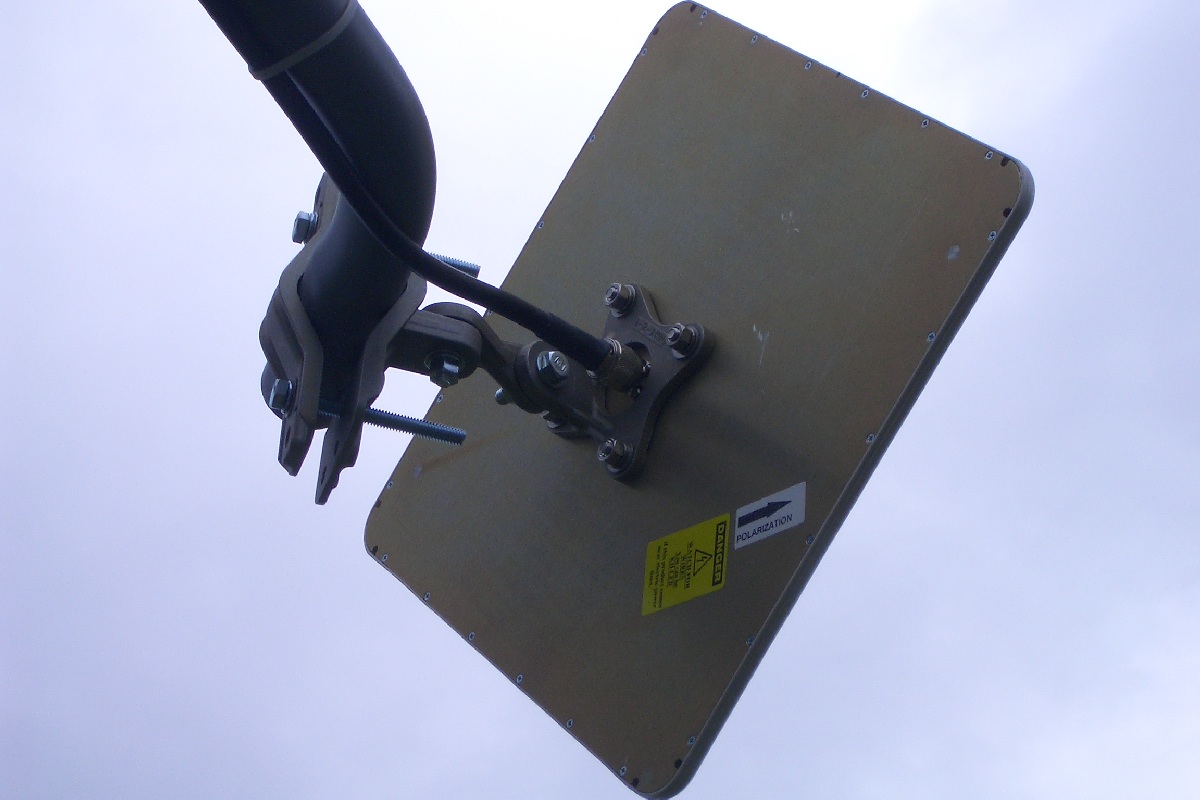

A close up of the
phased array antenna

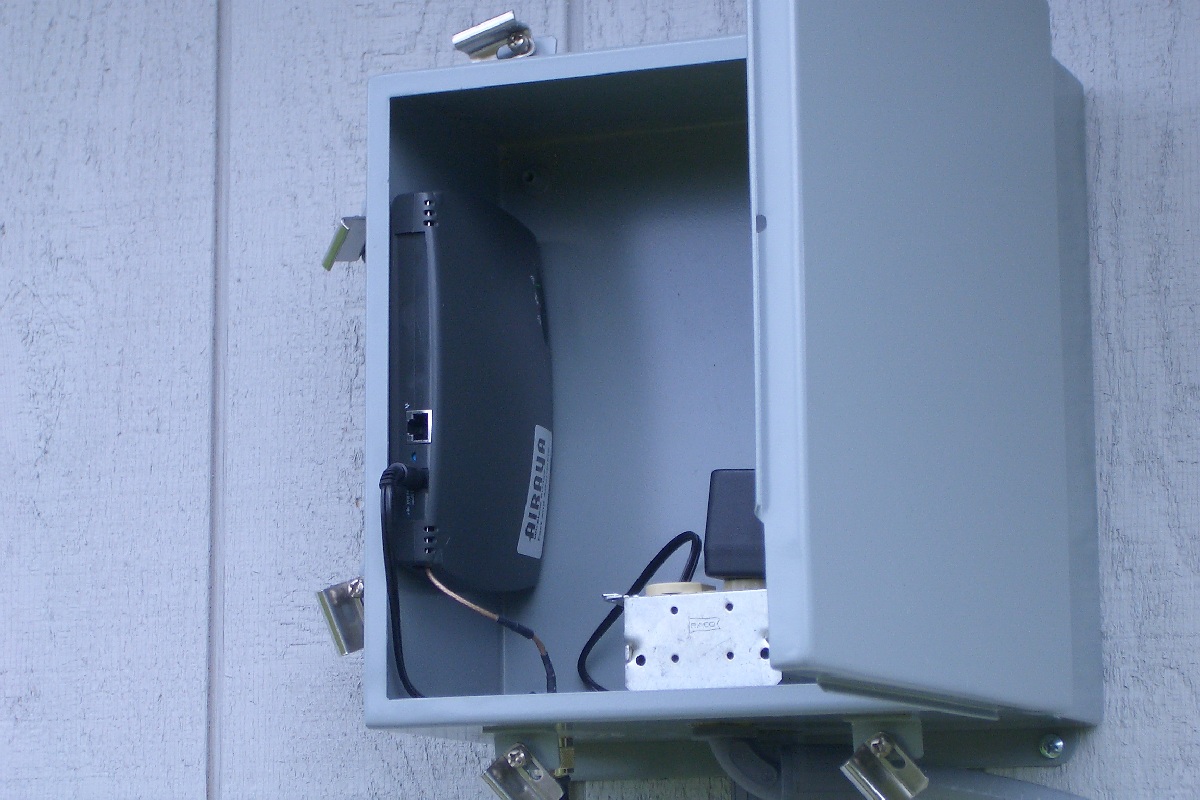

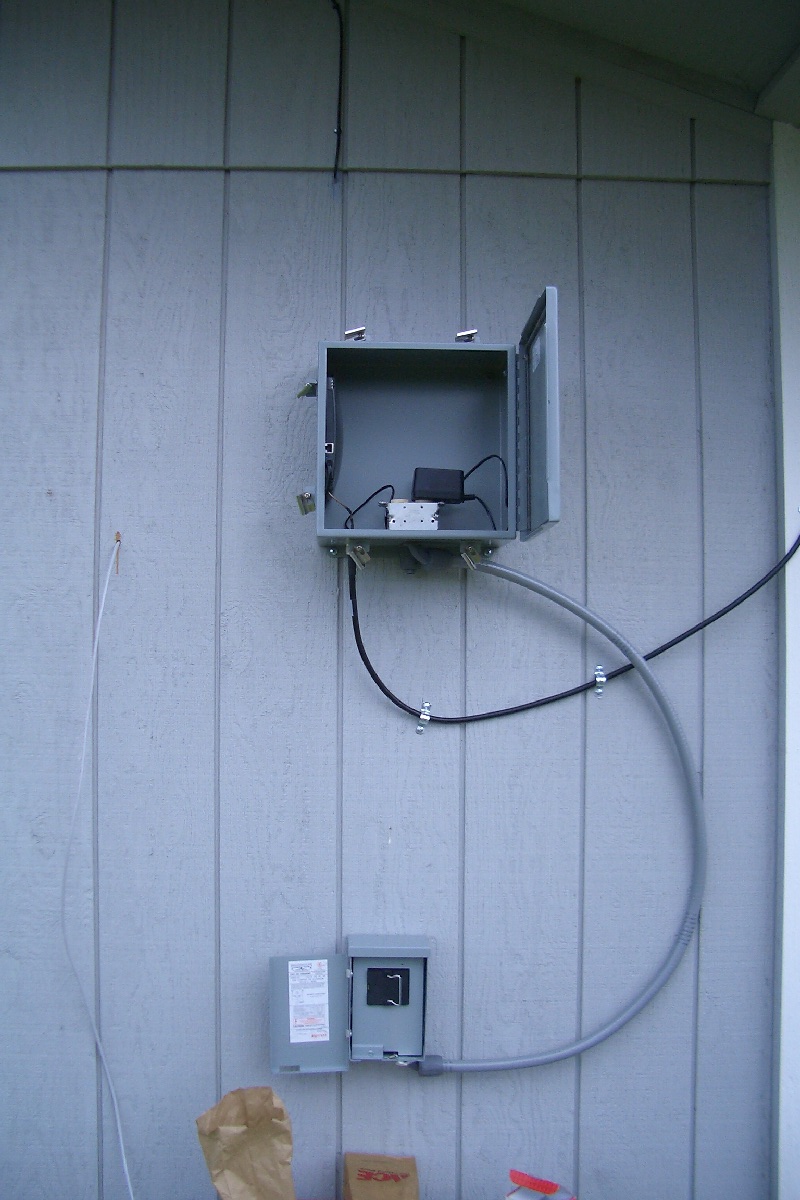

This enclosure will
house the radio.
Later we will add
UPS, and
additional radios

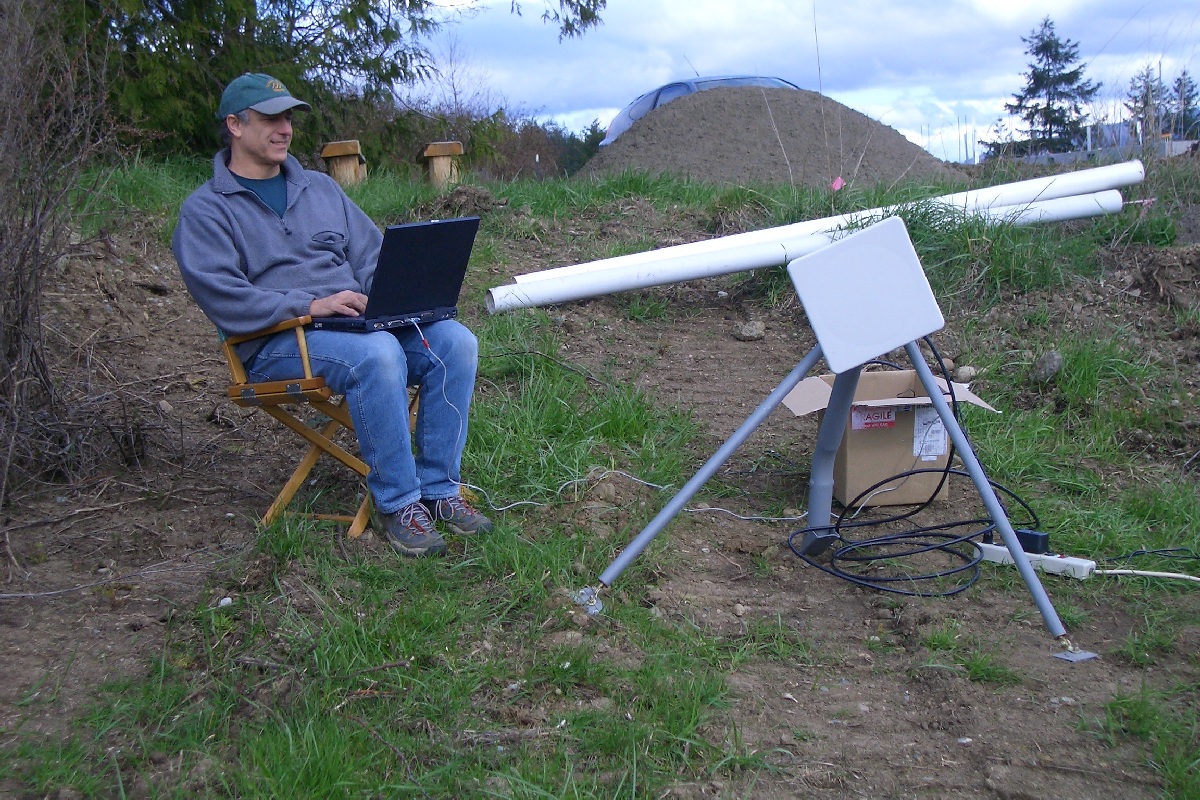

This is me, testing the
wireless connection.
Even with poorly
aligned antennas,
we were getting 41
Mbps.
Saw some deer
on the way home

More info.           Home






  Speed Interpretation


2004-03-27 17:13:58 EST: 10768 / 11034
Your download speed : 11026594 bps, or 10768 kbps.
A 1346 KB/sec transfer rate.
Your upload speed : 11299435 bps, or 11034 kbps.

Your Result vs Common benchmarks

kbps
2048

4096

6144

8192

10240

12288

14336
broadband
1mbit barrier
fast
2mbit barrier
very fast
3mbit barrier
dude!
5mbit barrier
Yours
10768 down
11034 up
  =Your data speed   = estimated TCP overhead popup more info
